Name: DMP Street Classification

Display Field: name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Purpose: Displays streets within the Downtown Master Plan and part of the DMP Zoning Atlas.Intended Use: Analysis/zoning decisions regarding the Downtown Master Plan districts.Department: Development Services / Urban Design Division.Data Source: Layer referenced is located within the Planning dataset.How was the data derived: From existing maps with the direction of the Urban Design Division when the code of ordinances established the Comprehensive Master Plan and the Chapter 94 - Zoning and Planning development Regulations, Article IV-Downtown Master Plan Urban Regulations.How was the data modified: Static layer except when directed by the Urban Design Division when amending the code of ordinances at Chapter 94 - Zoning and Planning Development Regulations, Article IV - Downtown Master Plan Urban Regulations and/or the Comprehensive Master Plan.Update Frequency: As need and new information provided from Planning Division.Notes: Created August 2018. The latest updates resulted from ordinance 4984-21 of the Comprehensive Master Plan and ordinance 4985-21 of the Chapter 94 - Zoning and Planning development Regulations, Article IV - Downtown Master Plan Urban Regulations..

Service Item Id: 1b715e2cf3dd4e0ea1ecf356baea1ea1

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 961135.6246469133
YMin: 860537.625421904
XMax: 966985.1250869967
YMax: 870210.5627689064
Spatial Reference: 2881  (2881)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: dmpstreetclassification
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Avenues
  Label: Avenues
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [169, 0, 230, 255]
  Width: 2
• Value: New Primary Pedestrian
  Label: New Primary Pedestrian
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [205, 245, 122, 255]
  Width: 2
• Value: New Residential
  Label: New Residential
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [182, 223, 252, 255]
  Width: 2
• Value: New Secondary
  Label: New Secondary
  Description: N/A
  Symbol:
  Style: esriSLSDash
  Color: [232, 190, 255, 255]
  Width: 2
• Value: Primary Pedestrian
  Label: Primary Pedestrian
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [205, 245, 122, 255]
  Width: 2
• Value: Residential
  Label: Residential
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 232, 255, 255]
  Width: 2
• Value: Secondary
  Label: Secondary
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [232, 190, 255, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• segmentid ( type: esriFieldTypeInteger, alias: Segment - ID )
• street ( type: esriFieldTypeString, alias: Street, length: 80 )
• prefix ( type: esriFieldTypeString, alias: Prefix, length: 2 )
• name ( type: esriFieldTypeString, alias: Name, length: 80 )
• type ( type: esriFieldTypeString, alias: Type, length: 4 )
• suffix ( type: esriFieldTypeString, alias: Suffix, length: 2 )
• fromleft ( type: esriFieldTypeDouble, alias: From Left )
• toleft ( type: esriFieldTypeDouble, alias: To Left )
• fromright ( type: esriFieldTypeDouble, alias: From Right )
• toright ( type: esriFieldTypeDouble, alias: To Right )
• l_zipcode ( type: esriFieldTypeInteger, alias: Left Zipcode )
• r_zipcode ( type: esriFieldTypeInteger, alias: Right Zipcode )
• l_muni ( type: esriFieldTypeString, alias: Left Muncipal, length: 25 )
• r_muni ( type: esriFieldTypeString, alias: Right Municipal, length: 25 )
• resp_auth ( type: esriFieldTypeString, alias: Responsible Authority, length: 10 )
• tfare_row ( type: esriFieldTypeString, alias: Tfare ROW, length: 12 )
• func_class ( type: esriFieldTypeString, alias: Functional Class, length: 50 )
• speed_lim ( type: esriFieldTypeDouble, alias: Speed Limit )
• lanes ( type: esriFieldTypeDouble, alias: Lanes )
• edit_date ( type: esriFieldTypeDate, alias: Edit Date, length: 8 )
• geometry_l ( type: esriFieldTypeDouble, alias: Geometry )
• gasb_id ( type: esriFieldTypeDouble, alias: GASB-ID )
• citycode ( type: esriFieldTypeInteger, alias: City Code )
• ZIPCODE ( type: esriFieldTypeString, alias: Zip Code, length: 10 )
• ossi ( type: esriFieldTypeString, alias: ossi, length: 5 )
• cfcc ( type: esriFieldTypeString, alias: CFCC, length: 5 )
• parkingfee ( type: esriFieldTypeInteger, alias: Parking Fee )
• dmpstreetclassification ( type: esriFieldTypeString, alias: DMP Street Classification, length: 50 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

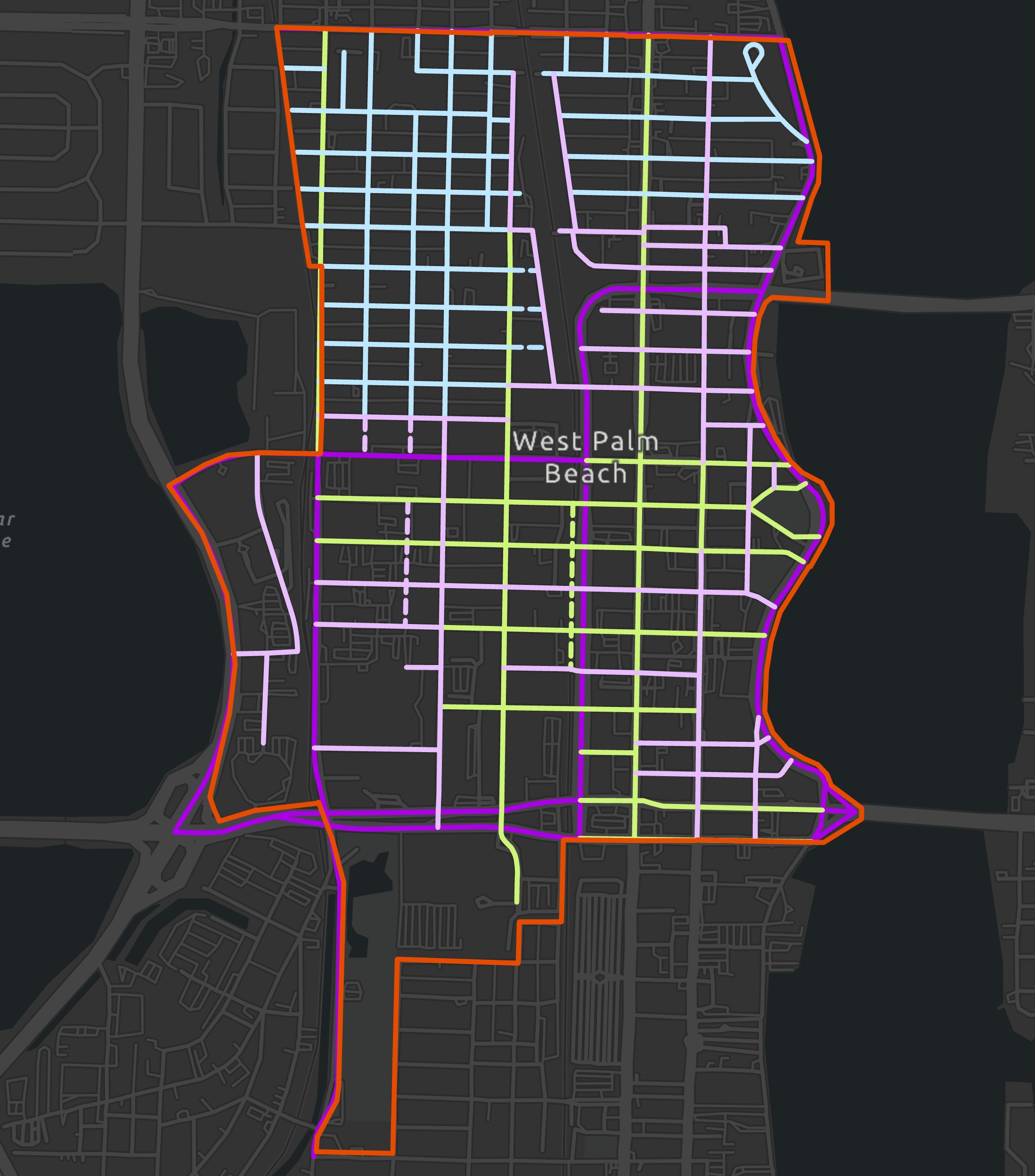

  Iteminfo   Thumbnail   Metadata
